這幾天看了Amy老師的用javascript實現瀑布流，我跟著把代碼敲出來。發現這樣寫只能第一次載入時適應屏幕，以後改變窗口大小就不能做到自適應了。

於是我想到了用window.onresize來使得瀑布流函數從新加載來達到目的，

復制代碼 代碼如下:
window.onload=function(){
    //瀑布流函數
    waterfall('content','box');
    //模擬數據加載
    var dataInt = {"data":[{"src":"01.jpg"},{"src":"02.jpg"},{"src":"03.jpg"},{"src":"04.jpg"},{"src":"05.jpg"},{"src":"06.jpg"},{"src":"07.jpg"}]}
    //當屏幕大小改變時從新執行瀑布流函數 達到從新適應的作用
    window.onresize=function(){
//      waterfall('content','box');
       setTimeout(function() {waterfall('content','box');}, 200);
    }
    window.onscroll=function(){
        if(checkScroll()){
            var oparent = document.getElementById('content');
            //將熏染的數據添加入html中
            for(var i=0;i<dataInt.data.length;i++){
                var obox = document.createElement("div");
                obox.className = "box";
                oparent.appendChild(obox);
                var opic = document.createElement("div");
                opic.className = "pic";
                obox.appendChild(opic);
                var oImg = document.createElement("img");
                oImg.src="img/"+dataInt.data[i].src;
                opic.appendChild(oImg);
            }
                waterfall('content','box');
        }
    }
}

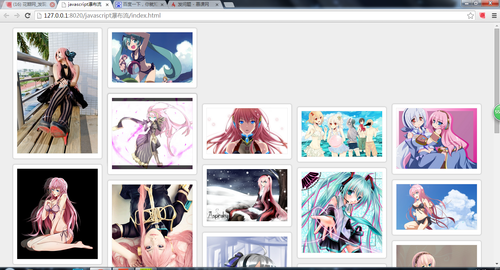

當屏幕縮小時是可以的，但是從縮小的放大就出現了BUG

看沒看到後面幾列的頂部回不來了，
於是我打開開發工具看是怎麼回事，

第3 4 5個div中不應該有style,是因為縮小的時候給他添加上去的，而放大了他沒有清除所以保留下來了就會出現這個樣子於是：我在瀑布流函數裡加了句aBox[i].style.cssText ='';使得每次進來都清空style

復制代碼 代碼如下:
function waterfall(parent,box){
    //將content下所有class box取出來
    var aParent = document.getElementById(parent);
    var aBox = getBclass(aParent,box);
    //獲取盒子的寬度
    var aBoxW = aBox[0].offsetWidth;
    //用浏覽器的可是寬度除以box寬度 得到列數
    var cols = Math.floor(document.documentElement.clientWidth/aBoxW);
    //設定 content的寬度 和居中
    aParent.style.cssText = 'width:'+aBoxW*cols+'px;height:auto;position: relative; margin:0 auto;padding-right:15px';
    //創建每一列的高度數組
    var hArr=[];
    for(var i=0; i<aBox.length;i++){
        aBox[i].style.cssText ='';
        if(i<cols){
            hArr.push(aBox[i].offsetHeight);
        }else{
            var minH = Math.min.apply(null,hArr);
            var index = getMinIndex(hArr,minH);  //找出高最矮的 索引值
            //console.log(aBoxW);
            aBox[i].style.position = 'absolute';
            aBox[i].style.top = minH+'px';
            aBox[i].style.left = aBoxW*index+'px';
            hArr[index]+=aBox[i].offsetHeight;
        }
    }
}

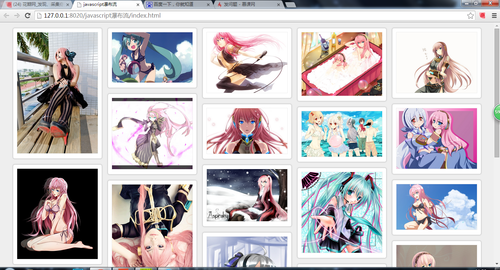

這樣就解決了縮小後回不來的BUG，可以正常自適應了

最後我把整個的javascript 貼出來

復制代碼 代碼如下:
window.onload=function(){
    //瀑布流函數
    waterfall('content','box');
    //模擬數據加載
    var dataInt = {"data":[{"src":"01.jpg"},{"src":"02.jpg"},{"src":"03.jpg"},{"src":"04.jpg"},{"src":"05.jpg"},{"src":"06.jpg"},{"src":"07.jpg"}]}
    //當屏幕大小改變時從新執行瀑布流函數 達到從新適應的作用
    window.onresize=function(){
//      waterfall('content','box');
       setTimeout(function() {waterfall('content','box');}, 200);
    }
    window.onscroll=function(){
        if(checkScroll()){
            var oparent = document.getElementById('content');
            //將熏染的數據添加入html中
            for(var i=0;i<dataInt.data.length;i++){
                var obox = document.createElement("div");
                obox.className = "box";
                oparent.appendChild(obox);
                var opic = document.createElement("div");
                opic.className = "pic";
                obox.appendChild(opic);
                var oImg = document.createElement("img");
                oImg.src="img/"+dataInt.data[i].src;
                opic.appendChild(oImg);
            }
                waterfall('content','box');
        }
    }

}
function waterfall(parent,box){
    //將content下所有class box取出來
    var aParent = document.getElementById(parent);
    var aBox = getBclass(aParent,box);

    //獲取盒子的寬度
    var aBoxW = aBox[0].offsetWidth;
    //用浏覽器的可是寬度除以box寬度 得到列數
    var cols = Math.floor(document.documentElement.clientWidth/aBoxW);
    //設定 content的寬度 和居中
    aParent.style.cssText = 'width:'+aBoxW*cols+'px;height:auto;position: relative; margin:0 auto;padding-right:15px';
    //創建每一列的高度數組
    var hArr=[];
    for(var i=0; i<aBox.length;i++){
        aBox[i].style.cssText ='';
        if(i<cols){
            hArr.push(aBox[i].offsetHeight);
        }else{
            var minH = Math.min.apply(null,hArr);
            var index = getMinIndex(hArr,minH);  //找出高最矮的 索引值
            //console.log(aBoxW);
            aBox[i].style.position = 'absolute';
            aBox[i].style.top = minH+'px';
            aBox[i].style.left = aBoxW*index+'px';
            hArr[index]+=aBox[i].offsetHeight;
        }
    }
}
//根據class獲取到元素
function getBclass(parent,className){
    var boxarr = new Array(); //用來存儲獲取到的class
        //console.log(parent.prototype);
    allElement=parent.getElementsByTagName('*');
    for(var i=0;i<allElement.length;i++){
        if(allElement[i].className == className){
            boxarr.push(allElement[i]);
        }
    }
    return boxarr;
}

//找出高最矮的 索引值
function getMinIndex(arr,value){
    for(var i in arr){
        if (arr[i]==value){
            return i;
        }
    }
}
//建立一個檢測輪輪滑動是否成立的函數  返回真假
function checkScroll(){
    var oparent = document.getElementById("content");
    var oBox = getBclass(oparent,'box');
    var lastoBoxTop = oBox[oBox.length-1].offsetTop+Math.floor(oBox[oBox.length-1].offsetHeight/2);
    //console.log(lastoBoxTop);
    var scrollTop = document.body.scrollTop||document.documentElement.scrollTop;
    var height = document.body.clientHeight||document.documentElement.clientHeight;
    //console.log(scrollTop);
    return(lastoBoxTop<scrollTop+height)?true:false;
}

css文件貼出來

復制代碼 代碼如下:
*{margin: 0;padding: 0;}
body{background-color: #eee;}
.content{
    position: relative;
    }
.box{
    padding: 15px 0 0 15px;
    float: left;
}
.pic{
    padding: 10px;
    border: 1px solid #ccc;
    box-shadow: 0 0 5px #CCCCCC;
    border-radius: 5px;
    background: #fff;
}
.pic img{
    width: 220px;
    height: auto;
    border: 1px solid #eee;
}

html文件貼出來

復制代碼 代碼如下:
<!DOCTYPE html>
<html>
    <head>
        <meta charset="utf-8" />
        <title>javascript瀑布流</title>
        <link rel="stylesheet" type="text/css" href="css/pubuli.css"/>
        <script type="text/javascript" src="js/my.js" ></script>
    </head>
    <body>
        <div id="content">
            <div class="box">
                <div class="pic">
                <img src="img/01.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/02.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/03.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/04.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/05.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/06.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/07.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/08.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/09.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/10.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/11.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/12.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/13.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/14.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/15.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/16.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/17.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/18.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/19.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/20.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/21.jpg"/>
                </div>
            </div>
            <div class="box">
                <div class="pic">
                <img src="img/22.jpg"/>
                </div>
            </div>
        </div>

    </body>
</html>

好了謝謝大家觀看，以前沒寫過技術分享類文章，有很多不周到的地方希望大家能多多指正。學習前端的小菜鳥敬上Y(^_^)Y
