js編寫的treeview使用方法
編輯:關於JavaScript

 本文實例為大家分享了treeview使用方法,供大家參考,具體內容如下

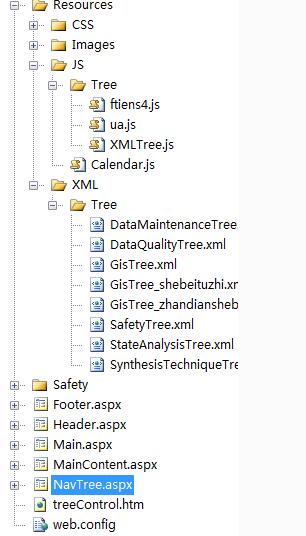

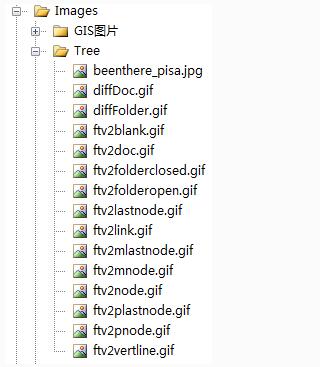

 1.所需文件:ftiens4.js,ua.js,XMLTree.js,以及一些樹上的圖片(文件下載處:http://www.treeview.net/),圖片名字和位置如下圖



2.其他頁面(MainContent.aspx,NavTree.aspx)放置位置如下圖所示:


3.關鍵頁面的代碼

3.1 MainContent.aspx代碼

<%@ Page Language="C#" CodeFile="MainContent.aspx.cs" Inherits="mainContent" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
  <title>北京市城市軌道交通設施運行狀態監測系統</title>
  <link rel="Shortcut Icon" href="Resources/Images/iehead.ico" />
  <link rel="Bookmark" href="Resources/Images/iehead.ico" />
  <script type="text/javascript">
  function op()
  {
   // This function is for folders that do not open pages themselves.
   // See the online instructions for more information.
  }
 </script>
</head>
 <frameset cols="250,10,*" border="0" frameSpacing="0" frameBorder="no" id="tree_frm">
   <frame src="navTree.Aspx" name="treeframe" noResize>
   <frame src="treeControl.htm" name="ctr_frm" id="ctr_frm" noResize scrolling="no">
   <frame src="#" name="mainGisWindow" id="basefrm" noResize>
 </frameset>
</html>

3.2 NavTree.aspx代碼

<%@ Page Language="C#" CodeFile="NavTree.aspx.cs" Inherits="navTree" %>


<html >
<head runat="server">
  <title>北京市城市軌道交通設施運行狀態監測系統</title>

<script src="Resources/JS/Tree/ua.js" type="text/javascript" language="javascript"></script>
 <!-- Infrastructure code for the TreeView. DO NOT REMOVE.  -->

<script src="Resources/JS/Tree/ftiens4.js" type="text/javascript" language="javascript"></script>
 <!-- Scripts that define the tree. DO NOT REMOVE.      -->
<script src="Resources/JS/Tree/XMLTree.js" type="text/javascript" language="javascript"></script>
  <%
   //Common.Utility.WebUtility.validLoning(Session, Response);
   string fileName = null;
   //Bussiness.Login.User loginUser = (Bussiness.Login.User)Session["currentUser"];
   string departmentid = "";
   if (Session["navItem"] != null)
   {
     string item = (string)Session["navItem"];

     if (item.ToUpper().Equals("Safety".ToUpper()))
     {
       fileName = "'SafetyTree.xml'";
       //departmentid = loginUser.department.depId;
     }
     else if (item.ToUpper().Equals("Gis".ToUpper()))
     {
       fileName = "'GisTree.xml'";
     }
     else if (item.ToUpper().Equals("DataQuality".ToUpper()))
     {
       fileName = "'DataQualityTree.xml'";
     }
     else if (item.ToUpper().Equals("StateAnalysis".ToUpper()))
     {
       fileName = "'StateAnalysisTree.xml'";
     }
     else if (item.ToUpper().Equals("SynthesisTechnique".ToUpper()))
     {
       fileName = "'SynthesisTechniqueTree.xml'";
     }
     else if (item.ToUpper().Equals("DataMaintenance".ToUpper()))
     {
       fileName = "'DataMaintenanceTree.xml'";
     }
   }
   %>
<script type="text/javascript">
  var xmlfile = "Resources/XML/Tree/"+<%=fileName %>;
  departmentid= '<%=departmentid %>';
  ICONPATH = 'Resources/Images/tree/';
  contentFrame = window.parent.document.getElementByIdx_x_x("basefrm");
  loadTreeFromXml(xmlfile);
</script>
  <style>
  BODY
   {

    background-image:url(/ESM/Resources/Images/DapHangNew.jpg);
    background-repeat:repeat-x;
   }
  TD {
   font-size: 10pt;
   font-family: verdana,helvetica;
   text-decoration: none;
   white-space:nowrap;}
  A {
   text-decoration: none;
   color: black;

   }

  .specialClass {
   font-family:garamond;
   font-size:10pt;
   color:Black;
   font-weight:lighter;
   text-decoration:underline
   }
 </style>
</head>
<body topmargin="16" marginheight="16">
  <!------------------------------------------------------------->
 <!-- IMPORTANT NOTICE:                    -->
 <!-- Removing the following link will prevent this script  -->
 <!-- from working. Unless you purchase the registered    -->
 <!-- version of TreeView, you must include this link.    -->
 <!-- If you make any unauthorized changes to the following  -->
 <!-- code, you will violate the user agreement. If you want -->
 <!-- to remove the link, see the online FAQ for instructions -->
 <!-- on how to obtain a version without the link.      -->
 <!------------------------------------------------------------->

<!--下面的一定不能刪,刪了就會有問題-->
<DIV style="position:absolute; top:0; left:0; display:none;"><TABLE border=0><TR><TD><FONT size=-2><A style="font-size:7pt;text-decoration:none;color:silver" href="http://www.treemenu.net/" target=_blank>Javascript Tree Menu</A></FONT></TD></TR></TABLE></DIV>
 <!-- Build the browser's objects and display default view -->
 <!-- of the tree.                     -->
 <script>
 initializeDocument();
 </script>
</body>
</html>

3.3 treeControl.aspx代碼(它的作用就是樹和右邊頁面的分隔欄,可以隱藏樹)

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title></title>
  <script type="text/javascript" language="javascript">
    var LEFT_MENU_VIEW=1;
    function leftmenu_ctrl()
    {
     if(LEFT_MENU_VIEW==0)
     {
      parent.tree_frm.cols="250,10,*";
      LEFT_MENU_VIEW=1;
      myarrow.src="/ESM/Resources/Images/topleft.gif"; //左箭頭
     }
     else
     {
      parent.tree_frm.cols="0,10,*";
      LEFT_MENU_VIEW=0;
      myarrow.src="/ESM/Resources/Images/topright.gif"; //右箭頭
     }
    }
  </script>

</head>
<body style="background-color:#F1F8FC;">
  <div id="AdLayer" style="position:absolute;width:60px; height:21px; z-index:20;visibility:visible;left:0%; top:40%;">
    <div id="oa_tree" onclick="leftmenu_ctrl();" title="隱藏工具欄" style="cursor:pointer;"><img id="myarrow" src="/ESM/Resources/Images/topleft.gif" alt="" /></div>
  </div>
</body>
</html>

[over]

這樣就成了。

以上就是本文的全部內容,希望對大家的學習有所幫助,也希望大家多多支持。
