jQuery時間軸插件使用詳解
編輯:關於JavaScript

這個時間軸是工作上用到的,自己寫了一個, qq空間有時間軸的控件, 百度文庫也有時間軸的控件;

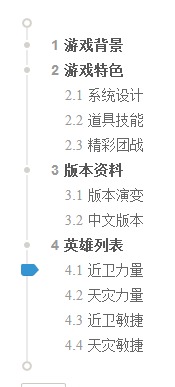

  百度的時間軸大概是這樣的:

  用戶點擊對應的錨鏈接,  那個三角會滾動, 然後左側的界面也會滾動;

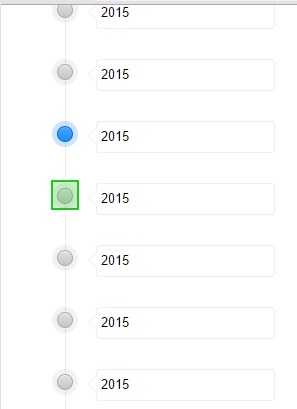

  實際的效果如下圖,用戶點擊左側的按鈕或者右側的input,滾動條都會主動滾動, 這裡有個小技巧就是用after和before偽類生成三角形, 用戶點擊按鈕的滾動效果直接用jq的animate方法:

<!--
//設置內容;
window.onWebMessage( '{"type":"setItems","data":{"items":[{"name":1111},{"name":2222}]}}' ) ;

//設置內容, 對應的item對象如果active為true為激活態;
window.onWebMessage( '{"type":"setItems","data":{"items":[{"name":1000},{"name":1111},{"name":2222},{"name":3333,"active":true}]}}' ) ;

//設置某個第n個位置的item;
window.onWebMessage('{"type":"setItem","data":[2,{ "name" : "add-item"}]}');

//激活第三個錨鏈接為選中態;
window.onWebMessage( '{"type":"active","data":2}' )

//獲取目前的數據:
window.onWebMessage( '{"type":"getItem"}' );
-->

<html>
  <head>
    <meta charset="utf-8" />
    <script src="http://cdn.bootcss.com/jquery/2.1.4/jquery.js"></script>
  </head>
  <style>
    /*初始的reset樣式*/
    *{
      margin:0;
      padding:0;
    }
    .time-line-wrap{
      position: relative;
      width: 400px;
      margin:0 auto;
    }
    ul{
      list-style: none;
    }
    body,html{
      height: 100%;
    }
    body{
      -webkit-user-select: none;
      -moz-user-select: none;
      -ms-user-select: none;
      user-select: none;
    }


    /*樣式開始*/
    .scroll-time-line{
      height:100%;
      overflow: hidden;
    }
    .time-line-wrap{
      position: relative;
    }
    .time-line-ul{
      position: relative;
    }
    /**
    時間軸的軸用偽類實現;
    */
    .time-line-ul::before{
      display: block;
      position:absolute;
      content:"";
      height:100%;
      width:1;
      left:27px;
      top:0;
      background: #eee;
    }
    .time-line-ul li{
      padding:14px;
      position: relative;
    }
    .time-line-ul input {
      vertical-align: super;
      border-radius: 4px;
      border:1px solid #eee;
      padding:4px;
      line-height: 22px;
      margin-left:10px;
    }
    /**
    使用after和before偽類實現input前面的三角形;
    */
    .time-line-ul li::before{
      position: absolute;
      content: "";
      display: block;
      top: 21px;
      left: 40px;
      width: 0px;
      height: 0px;
      border: 10px solid rgba(0, 0, 0, 0);
      border-right: 10px solid #EEE;
    }
    .time-line-ul li::after{
      position: absolute;
      content: "";
      display: block;
      top: 21px;
      left: 41px;
      width: 0px;
      height: 0px;
      border: 10px solid rgba(0, 0, 0, 0);
      border-right: 10px solid #fff;
    }
    /**
    默認時間軸錨鏈接的樣式
    */
    .time-line-icon{
      width: 26px;
      height: 28px;
      display: inline-block;
      background: url(http://images0.cnblogs.com/blog2015/497865/201507/131424386411828.png);
    }
    /**
    鼠標移動上來,或者錨鏈接有active時候的背景圖樣式
    */
    .time-line-icon.active,.time-line-icon:hover{
      background-position: 0px 28px;
    }
  </style>

  <!--模板,勿刪!-->
  <script type="text/tempate" id="li-tpl">
    <% for(var i=0; i<items.length; i++ ) {%>
      <li class="li-<%=i%>">
        <a href="###" class="time-line-icon <% if(items[i].active){ %> <%="active"%> <%}%> "></a>
        <input type="text" value="<%=items[i].name%>"/>
      </li>
    <% } %>
  </script>

  <body>
    <!--
    滾動出現在這個div裡面
    -->
    <div class="scroll-time-line">

      <!---
      時間軸相關的html結構
      -->
      <div class="time-line-wrap">
        <ul class="time-line-ul">
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
          <li>
            <a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
          </li>
        </ul>
      </div>
      <!---
      時間軸相關的html結構結束
      -->
    </div>
    <script>
      //模板引擎的代碼
      (function () {
        //underscore抄的模板引擎;
        var escaper = /\\|'|\r|\n|\t|\u2028|\u2029/g;

        var escapes = {
          "'":   "'",
          '\\':   '\\',
          '\r':   'r',
          '\n':   'n',
          '\t':   't',
          '\u2028': 'u2028',
          '\u2029': 'u2029'
        };

        $.templateSettings = {
          evaluate  : /<%([\s\S]+?)%>/g,
          interpolate : /<%=([\s\S]+?)%>/g,
          escape   : /<%-([\s\S]+?)%>/g
        }
        $.template = function(text, data, settings) {
          var render;
          settings = $.extend({}, settings, $.templateSettings);

          // Combine delimiters into one regular expression via alternation.
          var matcher = new RegExp([
            (settings.escape || noMatch).source,
            (settings.interpolate || noMatch).source,
            (settings.evaluate || noMatch).source
          ].join('|') + '|$', 'g');

          // Compile the template source, escaping string literals appropriately.
          var index = 0;
          var source = "__p+='";
          text.replace(matcher, function(match, escape, interpolate, evaluate, offset) {
            source += text.slice(index, offset)
                .replace(escaper, function(match) { return '\\' + escapes[match]; });

            if (escape) {
              source += "'+\n((__t=(" + escape + "))==null?'':_.escape(__t))+\n'";
            }
            if (interpolate) {
              source += "'+\n((__t=(" + interpolate + "))==null?'':__t)+\n'";
            }
            if (evaluate) {
              source += "';\n" + evaluate + "\n__p+='";
            }
            index = offset + match.length;
            return match;
          });
          source += "';\n";

          // If a variable is not specified, place data values in local scope.
          if (!settings.variable) source = 'with(obj||{}){\n' + source + '}\n';

          source = "var __t,__p='',__j=Array.prototype.join," +
              "print=function(){__p+=__j.call(arguments,'');};\n" +
              source + "return __p;\n";

          try {
            render = new Function(settings.variable || 'obj', '_', source);
          } catch (e) {
            e.source = source;
            throw e;
          }

          if (data) return render(data, _);
          var template = function(data) {
            return render.call(this, data);
          };

          // Provide the compiled function source as a convenience for precompilation.
          template.source = 'function(' + (settings.variable || 'obj') + '){\n' + source + '}';

          return template;
        };
      })();

      (function( fn ) {

        $( fn.call( $ ,$) );

      })(function ($) {

        $.timeLineSetting = {
          offsetTop : 100
        };
        $.extend($.fn, {
          timeLine : function() {
            $.each(this, function() {

              var _this = this;

              $(this).delegate(".time-line-ul>li", "click", function( ev ) {

                $(".time-line-icon.active").removeClass("active");

                $(this).find(".time-line-icon").addClass("active");

                $(_this).animate({scrollTop: this.offsetTop - $.timeLineSetting.offsetTop},300);

                ev.preventDefault();

              });
            });
          }
        });
      });
      $(function() {
        var compile= $.template( $("#li-tpl").html() || "");

        //與客戶端的交互事件;
        var orginalData = {};
        window.onWebMessage = function( msg ) {
          msg = JSON.parse(msg);
          switch( msg.type ) {
            case "setItems" :
              $(".time-line-ul").html( compile(msg.data) );
              //結構化復制;
              orginalData = JSON.parse(JSON.stringify(msg.data));
              break;

            case "setItem" :
              orginalData.items&&orginalData.items.splice(msg.data[0],0,msg.data[1]);
              $(".time-line-ul").html( compile(orginalData) );
              break;

            case "getItem" :
                alert(JSON.stringify( orginalData ));
              break;

            case "active" :
              $(".time-line-icon.active").removeClass("active");
              $(".time-line-ul>li").eq( msg.data).find(".time-line-icon").addClass("active")
              break;

          };

        };

        //啟用插件;
        $(".scroll-time-line").timeLine();
      })
    </script>
  </body>
</html>

   模板用了underscore,tempate方法掛到了$下, 作為$的工具方法(依賴於jQuery),模板的js代碼直接放這裡方便一些小項目直接用:

      //模板引擎的代碼
      (function () {
        //underscore抄的模板引擎;
        var escaper = /\\|'|\r|\n|\t|\u2028|\u2029/g;

        var escapes = {
          "'":   "'",
          '\\':   '\\',
          '\r':   'r',
          '\n':   'n',
          '\t':   't',
          '\u2028': 'u2028',
          '\u2029': 'u2029'
        };

        $.templateSettings = {
          evaluate  : /<%([\s\S]+?)%>/g,
          interpolate : /<%=([\s\S]+?)%>/g,
          escape   : /<%-([\s\S]+?)%>/g
        }
        $.template = function(text, data, settings) {
          var render;
          settings = $.extend({}, settings, $.templateSettings);

          // Combine delimiters into one regular expression via alternation.
          var matcher = new RegExp([
            (settings.escape || noMatch).source,
            (settings.interpolate || noMatch).source,
            (settings.evaluate || noMatch).source
          ].join('|') + '|$', 'g');

          // Compile the template source, escaping string literals appropriately.
          var index = 0;
          var source = "__p+='";
          text.replace(matcher, function(match, escape, interpolate, evaluate, offset) {
            source += text.slice(index, offset)
                .replace(escaper, function(match) { return '\\' + escapes[match]; });

            if (escape) {
              source += "'+\n((__t=(" + escape + "))==null?'':_.escape(__t))+\n'";
            }
            if (interpolate) {
              source += "'+\n((__t=(" + interpolate + "))==null?'':__t)+\n'";
            }
            if (evaluate) {
              source += "';\n" + evaluate + "\n__p+='";
            }
            index = offset + match.length;
            return match;
          });
          source += "';\n";

          // If a variable is not specified, place data values in local scope.
          if (!settings.variable) source = 'with(obj||{}){\n' + source + '}\n';

          source = "var __t,__p='',__j=Array.prototype.join," +
              "print=function(){__p+=__j.call(arguments,'');};\n" +
              source + "return __p;\n";

          try {
            render = new Function(settings.variable || 'obj', '_', source);
          } catch (e) {
            e.source = source;
            throw e;
          }

          if (data) return render(data, _);
          var template = function(data) {
            return render.call(this, data);
          };

          // Provide the compiled function source as a convenience for precompilation.
          template.source = 'function(' + (settings.variable || 'obj') + '){\n' + source + '}';

          return template;
        };
      })();

  模板的使用的DEMO如下, 也可以參考官方的文檔:http://underscorejs.org/#template:

<html>
  <head>
    <body>
      <script src="http://cdn.bootcss.com/jquery/2.1.4/jquery.js"></script>
      <script>
      //模板引擎的代碼
      (function () {
        //underscore抄的模板引擎;
        var escaper = /\\|'|\r|\n|\t|\u2028|\u2029/g;

        var escapes = {
          "'":   "'",
          '\\':   '\\',
          '\r':   'r',
          '\n':   'n',
          '\t':   't',
          '\u2028': 'u2028',
          '\u2029': 'u2029'
        };

        $.templateSettings = {
          evaluate  : /<%([\s\S]+?)%>/g,
          interpolate : /<%=([\s\S]+?)%>/g,
          escape   : /<%-([\s\S]+?)%>/g
        }
        $.template = function(text, data, settings) {
          var render;
          settings = $.extend({}, settings, $.templateSettings);

          // Combine delimiters into one regular expression via alternation.
          var matcher = new RegExp([
            (settings.escape || noMatch).source,
            (settings.interpolate || noMatch).source,
            (settings.evaluate || noMatch).source
          ].join('|') + '|$', 'g');

          // Compile the template source, escaping string literals appropriately.
          var index = 0;
          var source = "__p+='";
          text.replace(matcher, function(match, escape, interpolate, evaluate, offset) {
            source += text.slice(index, offset)
                .replace(escaper, function(match) { return '\\' + escapes[match]; });

            if (escape) {
              source += "'+\n((__t=(" + escape + "))==null?'':_.escape(__t))+\n'";
            }
            if (interpolate) {
              source += "'+\n((__t=(" + interpolate + "))==null?'':__t)+\n'";
            }
            if (evaluate) {
              source += "';\n" + evaluate + "\n__p+='";
            }
            index = offset + match.length;
            return match;
          });
          source += "';\n";

          // If a variable is not specified, place data values in local scope.
          if (!settings.variable) source = 'with(obj||{}){\n' + source + '}\n';

          source = "var __t,__p='',__j=Array.prototype.join," +
              "print=function(){__p+=__j.call(arguments,'');};\n" +
              source + "return __p;\n";

          try {
            render = new Function(settings.variable || 'obj', '_', source);
          } catch (e) {
            e.source = source;
            throw e;
          }

          if (data) return render(data, _);
          var template = function(data) {
            return render.call(this, data);
          };

          // Provide the compiled function source as a convenience for precompilation.
          template.source = 'function(' + (settings.variable || 'obj') + '){\n' + source + '}';

          return template;
        };
      })();
      </script>
      <script>
      //會輸出 <div>haahah</div>;
      console.log( $.template('<div><%=data%></div>')( {data:"haahah"} ) );
      </script>
    </body>
  </head>
</html>

  修改了時間軸的樣式, 又為這個插件添加了拖拽的方法,代碼一下變得好亂, 順便普及一下拖拽的事件, ondrop, ondragover,ondrag, 如果要讓元素可以拖拽, 就要為要拖拽的元素添加draggable="true",   元素可以拖拽以後 , 要為可以拖放到的的DIV或者其他塊元素,綁定一個dragover方法, 這個方法就做一件事, ev.preventDefault(), 看代碼撒:

運行下面代碼

<!DOCTYPE HTML>
<html>
<head>
  <meta charset="utf-8"/>
  <style type="text/css">
    #div1 {width:488px;height:70px;padding:10px;border:1px solid #aaaaaa;}
  </style>
  <script type="text/javascript">
    //當元素dragover時候一定要阻止默認事件, 否則把當前拖拽的元素就無法drop;
    function dragover(ev)
    {
      console.log(ev);
      ev.preventDefault();
    }

    //對於拖拽事件最重要的一個事件屬性就是dataTransfer;
    function drag(ev)
    {
      console.log(ev);
      ev.dataTransfer.setData("Text",ev.target.id);
    }

    function drop(ev)
    {
      console.log(ev);
      var data=ev.dataTransfer.getData("Text");
      ev.target.appendChild(document.getElementById(data));
    }
  </script>
</head>
<body>

<p>請把圖片拖放到矩形中:</p>

<div id="div1" ondrop="drop(event)" ondragover="dragover(event)"></div>
<br />
<img id="drag1" src="http://images0.cnblogs.com/news/24442/201507/081152502219706.gif" draggable="true" ondragstart="drag(event)" />

</body>
</html>

  另外一個DEMO:

運行下面代碼

<!DOCTYPE HTML>
<html>
<head>
  <meta charset="utf-8"/>
  <style type="text/css">
  </style>
</head>
<body>
  <p>What fruits do you like?</p>
  <ol ondragstart="dragStartHandler(event)">
    <li draggable="true" data-value="fruit-apple">Apples</li>
    <li draggable="true" data-value="fruit-orange">Oranges</li>
    <li draggable="true" data-value="fruit-pear">Pears</li>
  </ol>
  <script>
    var internalDNDType = 'text/x-example'; // set this to something specific to your site
    function dragStartHandler(event) {
      if (event.target instanceof HTMLLIElement) {
        // use the element's data-value="" attribute as the value to be moving:
        event.dataTransfer.setData(internalDNDType, event.target.dataset.value);
        event.dataTransfer.effectAllowed = 'move'; // only allow moves
      } else {
        event.preventDefault(); // don't allow selection to be dragged
      }
    }
  </script>

  <p>Drop your favorite fruits below:</p>
  <ol ondrop="dropHandler(event)" ondragover="dragover(event)">
    <!-- don't forget to change the "text/x-example" type to something
    specific to your site -->
    <li>drop</li>
  </ol>
  <script>
    var internalDNDType = 'text/x-example'; // set this to something specific to your site
    function dropHandler(event) {
      var li = document.createElement('li');
      var data = event.dataTransfer.getData(internalDNDType);
      if (data == 'fruit-apple') {
        li.textContent = 'Apples';
      } else if (data == 'fruit-orange') {
        li.textContent = 'Oranges';
      } else if (data == 'fruit-pear') {
        li.textContent = 'Pears';
      } else {
        li.textContent = 'Unknown Fruit';
      }
      event.target.appendChild(li);
    };
    function dragover(ev) {
      ev.preventDefault();
    };
  </script>
</body>
</html>

   HTML5的拖拽提供了 setDragImage ,  effectAllowed , setData.... 等很多便捷的方法給開發者,  通過FileReader讀取File, 然後就可以用ajax與後台進行交互, 和前端DOM操作:

<!DOCTYPE HTML>
<html>
<head>
  <meta charset="utf-8"/>
  <style type="text/css">
  </style>
</head>
<body>
  <div id="div0" ondragover="dragover(event)" ondrop="drop(event)">
    drop拖放文件進來
  </div>
  <script>
    function dragover(ev) {
      ev.preventDefault();
    };
    function drop(ev) {
      var reader = new FileReader();
      reader.onload = function ( ev ) {
        var oDiv = document.createElement("div");
        oDiv.innerHTML = ev.target.result;
        document.body.appendChild( oDiv );
      };
      reader.readAsText( ev.dataTransfer.files[0] );
      ev.preventDefault();
    }
  </script>
</body>
</html>

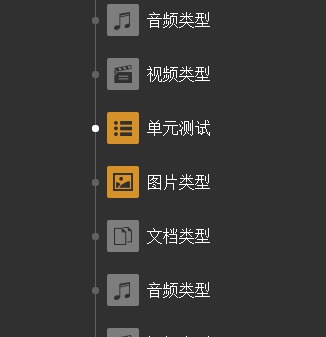

  插件效果圖:

  最後完成的插件代碼:

<!--
//設置內容;
window.onWebMessage( '{"type":"setItems","data":{"items":[{"name":1111,"type":"doc"},{"name":2222,"type":"doc"}]}}' ) ;

window.onWebMessage( '{"type":"setItems","data":{"items":[{"name":"文檔類型","type":"doc"},{"name":"音頻類型","type":"audio","active":true},{"name":"視頻類型","type":"video"},{"name":"單元測試","type":"test"},{"name":"圖片類型","type":"pic"}]}}' ) ;

//設置內容, 對應的item對象如果active為true為激活態;
window.onWebMessage( '{"type":"setItems","data":{"items":[{"name":1111,"type":"doc"},{"name":2222,"type":"doc","active":true}]}}' ) ;

//設置某個第n個位置的item;
window.onWebMessage('{"type":"setItem","data":[2,{ "name" : "add-item", "type":"doc"}]}');

//激活第三個錨鏈接為選中態;
window.onWebMessage( '{"type":"active","data":2}' )

//獲取目前的數據:
window.onWebMessage( '{"type":"getItem"}' )
-->

<html>
  <head>
    <meta charset="utf-8" />
    <script src="http://cdn.bootcss.com/jquery/2.1.4/jquery.js"></script>
  </head>
  <style>
    /*初始的reset樣式*/
    *{
      margin:0;
      padding:0;
    }
    .time-line-wrap{
      position: relative;
      width: 400px;
      margin:0 auto;
    }
    ul{
      list-style: none;
    }
    body,html{
      height: 100%;
    }
    body{
      background:#303030;
      -webkit-user-select: none;
      -moz-user-select: none;
      -ms-user-select: none;
      user-select: none;
    }


    /*樣式開始*/
    .scroll-time-line{
      height:100%;
      overflow: hidden;
    }
    .time-line-wrap{
      position: relative;
    }
    .time-line-wrap::before{
      display: block;
      content: "";
      position: absolute;
      border: 2px solid #616161;
      width: 7px;
      background: #303030;
      height: 7px;
      z-index: 2;
      border-radius: 100%;
      left: 12px;
      top: 0;
    }
    .time-line-wrap::after{
      display: block;
      content: "";
      position: absolute;
      border: 2px solid #616161;
      width: 7px;
      background: #303030;
      height: 7px;
      z-index: 2;
      border-radius: 100%;
      left: 12px;
      bottom:0;
    }
    .time-line-ul{
      position: relative;
    }
    /**
    時間軸的軸用偽類實現;
    */
    .time-line-ul::before{
      display: block;
      position:absolute;
      content:"";
      height:100%;
      width:1px;
      left:17px;
      top:0;
      background: #616161;
    }

    .time-line-ul li{
      padding: 14px;
      position: relative;
      color: #FFF;
      height: 26px;
    }
    .time-line-ul li>* {
      vertical-align: middle;
      display: inline-block;
    }

    /**
    為了更好的維護hover的樣式, 背景圖片通過js進行管理
    hover start;
    */
    .time-line-ul li b{
      width: 32px;
      height: 32px;
    }
    .time-line-ul li b.active{
      display: none;
    }
    .time-line-ul li:hover b{
      display: none;
    }
    .time-line-ul li:hover .active{
      display: inline-block;
    }
    /**
      當li被點擊的時候添加的類,優先級
    */
    .time-line-ul li b.show{
      display: none;
    }
    .time-line-ul li b.active.show{
      display: inline-block;
    }
    /**
    hover end
    */

    .time-line-ul li span{
      display: inline-block;
      white-space: nowrap;
      word-wrap: normal;
      width: 100px;
      text-overflow: ellipsis;
      overflow: hidden;
    }
    /**
    當拖拽LI到某個LI上面,這個LI變透明
    */
    .over{
      opacity: 0.4;
    }
    /**
    占位DIV;
    */
    .blank{
      display: block;
      height:50px;
      line-height: 50px;
    }

    /**
    默認時間軸錨鏈接的樣式
    */
    .time-line-icon{
      width: 7px;
      height: 7px;
      display: inline-block;
      background: #616161;
      border-radius: 100%;
    }
    /**
    鼠標移動上來,或者錨鏈接有active時候的背景圖樣式
    */
    .time-line-icon.active,.time-line-icon:hover{
      background: #fff;
    }
  </style>

  <!--模板,勿刪!-->
  <script type="text/tempate" id="li-tpl">
    <% for(var i=0; i<items.length; i++ ) {%>
      <li class="li-<%=i%>" draggable="true">
        <a href="###" class="time-line-icon <% if(items[i].active){ %> <%="active"%> <%}%> "></a>
        <b class="">
          <img src="imgs/<%=items[i].type%>.png" />
        </b>
        <b class="active">
          <img src="imgs/<%=items[i].type%>1.png" />
        </b>
        <span>
          <%=items[i].name%>
        </span>
      </li>
    <% } %>
  </script>

  <body>
    <!--
    滾動出現在這個div裡面
    -->
    <div class="scroll-time-line">

      <!---
      時間軸相關的html結構
      -->
      <div class="time-line-wrap">
        <ul class="time-line-ul">

          <!----假數據--->
          <li class="li-0" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/doc.png">
            </b>
            <b class="active">
              <img src="imgs/doc1.png">
            </b>
            <span>
              文檔類型
            </span>
          </li>

          <li class="li-2" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/video.png">
            </b>
            <b class="active">
              <img src="imgs/video1.png">
            </b>
            <span>
              視頻類型
            </span>
          </li>


          <li class="li-3" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/test.png">
            </b>
            <b class="active">
              <img src="imgs/test1.png">
            </b>
            <span>
              單元測試
            </span>
          </li><li class="li-1" draggable="true">
          <a href="###" class="time-line-icon active "></a>
          <b class="">
            <img src="imgs/audio.png">
          </b>
          <b class="active">
            <img src="imgs/audio1.png">
          </b>
          <span>
            音頻類型
          </span>
        </li>

          <li class="li-4" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/pic.png">
            </b>
            <b class="active">
              <img src="imgs/pic1.png">
            </b>
          <span>
            圖片類型
          </span>
          </li>

          <li class="li-0" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/doc.png">
            </b>
            <b class="active">
              <img src="imgs/doc1.png">
            </b>
            <span>
              文檔類型
            </span>
          </li>

          <li class="li-2" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/video.png">
            </b>
            <b class="active">
              <img src="imgs/video1.png">
            </b>
            <span>
              視頻類型
            </span>
          </li>


          <li class="li-3" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/test.png">
            </b>
            <b class="active">
              <img src="imgs/test1.png">
            </b>
            <span>
              單元測試
            </span>
          </li><li class="li-1" draggable="true">
          <a href="###" class="time-line-icon active "></a>
          <b class="">
            <img src="imgs/audio.png">
          </b>
          <b class="active">
            <img src="imgs/audio1.png">
          </b>
          <span>
            音頻類型
          </span>
        </li>

          <li class="li-4" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/pic.png">
            </b>
            <b class="active">
              <img src="imgs/pic1.png">
            </b>
            <span>
              圖片類型
            </span>
          </li>

          <li class="li-0" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/doc.png">
            </b>
            <b class="active">
              <img src="imgs/doc1.png">
            </b>
            <span>
              文檔類型
            </span>
          </li>

          <li class="li-2" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/video.png">
            </b>
            <b class="active">
              <img src="imgs/video1.png">
            </b>
            <span>
              視頻類型
            </span>
          </li>


          <li class="li-3" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/test.png">
            </b>
            <b class="active">
              <img src="imgs/test1.png">
            </b>
            <span>
              單元測試
            </span>
          </li><li class="li-1" draggable="true">
          <a href="###" class="time-line-icon active "></a>
          <b class="">
            <img src="imgs/audio.png">
          </b>
          <b class="active">
            <img src="imgs/audio1.png">
          </b>
          <span>
            音頻類型
          </span>
        </li>

          <li class="li-4" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/pic.png">
            </b>
            <b class="active">
              <img src="imgs/pic1.png">
            </b>
            <span>
              圖片類型
            </span>
          </li>

          <li class="li-0" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/doc.png">
            </b>
            <b class="active">
              <img src="imgs/doc1.png">
            </b>
            <span>
              文檔類型
            </span>
          </li>

          <li class="li-2" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/video.png">
            </b>
            <b class="active">
              <img src="imgs/video1.png">
            </b>
            <span>
              視頻類型
            </span>
          </li>


          <li class="li-3" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/test.png">
            </b>
            <b class="active">
              <img src="imgs/test1.png">
            </b>
            <span>
              單元測試
            </span>
          </li><li class="li-1" draggable="true">
            <a href="###" class="time-line-icon active "></a>
            <b class="">
              <img src="imgs/audio.png">
            </b>
            <b class="active">
              <img src="imgs/audio1.png">
            </b>
            <span>
              音頻類型
            </span>
          </li>

          <li class="li-4" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/pic.png">
            </b>
            <b class="active">
              <img src="imgs/pic1.png">
            </b>
            <span>
              圖片類型
            </span>
          </li>

          <li class="li-0" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/doc.png">
            </b>
            <b class="active">
              <img src="imgs/doc1.png">
            </b>
            <span>
              文檔類型
            </span>
          </li>

          <li class="li-2" draggable="true">
            <a href="###" class="time-line-icon "></a>
            <b class="">
              <img src="imgs/video.png">
            </b>
            <b class="active">
              <img src="imgs/video1.png">
            </b>
            <span>
              視頻類型
            </span>
          </li>


          <!---假數據end--->

        </ul>
      </div>
      <!---
      時間軸相關的html結構結束
      -->
    </div>
    <script>
      //模板引擎的代碼
      (function () {
        //underscore抄的模板引擎;
        var escaper = /\\|'|\r|\n|\t|\u2028|\u2029/g;

        var escapes = {
          "'":   "'",
          '\\':   '\\',
          '\r':   'r',
          '\n':   'n',
          '\t':   't',
          '\u2028': 'u2028',
          '\u2029': 'u2029'
        };

        $.templateSettings = {
          evaluate  : /<%([\s\S]+?)%>/g,
          interpolate : /<%=([\s\S]+?)%>/g,
          escape   : /<%-([\s\S]+?)%>/g
        }
        $.template = function(text, data, settings) {
          var render;
          settings = $.extend({}, settings, $.templateSettings);

          // Combine delimiters into one regular expression via alternation.
          var matcher = new RegExp([
            (settings.escape || noMatch).source,
            (settings.interpolate || noMatch).source,
            (settings.evaluate || noMatch).source
          ].join('|') + '|$', 'g');

          // Compile the template source, escaping string literals appropriately.
          var index = 0;
          var source = "__p+='";
          text.replace(matcher, function(match, escape, interpolate, evaluate, offset) {
            source += text.slice(index, offset)
                .replace(escaper, function(match) { return '\\' + escapes[match]; });

            if (escape) {
              source += "'+\n((__t=(" + escape + "))==null?'':_.escape(__t))+\n'";
            }
            if (interpolate) {
              source += "'+\n((__t=(" + interpolate + "))==null?'':__t)+\n'";
            }
            if (evaluate) {
              source += "';\n" + evaluate + "\n__p+='";
            }
            index = offset + match.length;
            return match;
          });
          source += "';\n";

          // If a variable is not specified, place data values in local scope.
          if (!settings.variable) source = 'with(obj||{}){\n' + source + '}\n';

          source = "var __t,__p='',__j=Array.prototype.join," +
              "print=function(){__p+=__j.call(arguments,'');};\n" +
              source + "return __p;\n";

          try {
            render = new Function(settings.variable || 'obj', '_', source);
          } catch (e) {
            e.source = source;
            throw e;
          }

          if (data) return render(data, _);
          var template = function(data) {
            return render.call(this, data);
          };

          // Provide the compiled function source as a convenience for precompilation.
          template.source = 'function(' + (settings.variable || 'obj') + '){\n' + source + '}';

          return template;
        };
      })();

      (function( fn ) {

        $( fn.call( $ ,$) );

      })(function ($) {

        $.timeLineSetting = {
          offsetTop : 100
        };

        $.extend($.fn, {
          timeLine : function() {
            $.each(this, function() {

              var _this = this,
                  eleDrag;
              $(this).delegate(".time-line-ul>li", "click", function( ev ) {
                $(".time-line-icon.active").removeClass("active");
                $(this).find(".time-line-icon").addClass("active");
                $("b").removeClass("show");
                $(this).find("b").addClass("show");
                $(_this).animate({scrollTop: this.offsetTop - $.timeLineSetting.offsetTop},300);
                ev.preventDefault();
              }).delegate(".time-line-ul>li","dragstart" , function(ev) {
                //不允許img和a的拖拽;
                if( ev.target&&ev.target.tagName.toLocaleLowerCase() === "img" || ev.target.tagName.toLocaleLowerCase() === "a") {
                  return false;
                };
                /*拖拽開始*/
                //拖拽效果
                ev.originalEvent.dataTransfer.effectAllowed = "move";
                eleDrag = ev.originalEvent.target;
                return true;
              }).delegate(".time-line-ul>li","dragenter" , function(ev) {
                return true;
              }).delegate(".time-line-ul>li", "dragover" , function(ev) {
                $(".time-line-ul>li.over").removeClass("over");
                $(this).addClass("over");
                $(".blank").remove();
                var $blank = $("<li class='blank' draggable='true'></li>");
                $(this).after( $blank );
                /*拖拽元素在目標元素頭上移動的時候*/
                ev.preventDefault();
                return true;
              });
              $(".time-line-ul").bind("drop" , function(ev) {
                if(ev.target.tagName.toLocaleLowerCase() === "li") {
                  $(ev.target).after( eleDrag );
                };
                $(".blank").remove();
                $(".time-line-ul>li.over").removeClass("over");
                return false;
              });
            });
          }
        });
      });

      $(function() {
        var compile= $.template( $("#li-tpl").html() || "");

        //與客戶端的交互事件;
        var orginalData = {};
        window.onWebMessage = function( msg ) {
          msg = JSON.parse(msg);
          switch( msg.type ) {
            case "setItems" :
              $(".time-line-ul").html( compile(msg.data) );
              //結構化復制;
              orginalData = JSON.parse(JSON.stringify(msg.data));
              break;

            case "setItem" :
              orginalData.items&&orginalData.items.splice(msg.data[0],0,msg.data[1]);
              $(".time-line-ul").html( compile(orginalData) );
              break;

            case "getItem" :
                var result = [];
                var lis = $(".time-line-ul li");
                for(var i=0; i<lis.length; i++) {
                  result.push( {
                    index : i,
                    src : $(lis[i]).find("img").attr("src"),
                    name : $(lis[i]).find("span").text()
                  });
                };
                alert(JSON.stringify( result ));
              break;

            case "active" :
              $(".time-line-icon.active").removeClass("active");
              $(".time-line-ul>li").eq( msg.data).find(".time-line-icon").addClass("active")
              break;

          };

        };

        //啟用插件;
        $(".scroll-time-line").timeLine();
      })
    </script>
  </body>
</html>

以上所述就是本文的全部內容了,希望大家能夠喜歡。

XML學習教程| jQuery入門知識| AJAX入門| Dreamweaver教程| Fireworks入門知識| SEO技巧| SEO優化集錦|
Copyright © DIV+CSS佈局教程網 All Rights Reserved
